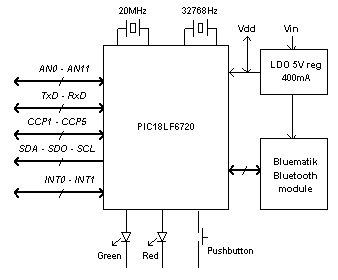

ToothPIC is a PIC microcontroller and BlueMatik radio combination, preloaded with ToothPIC Services firmware providing FlexiPanel user interface server, wireless field programming and ToothPIC Slave for optional external host control.

Hardware Features

• FCC / CE / IC certified Class 1 Bluetooth V1.1 radio, 100m range, integral antenna

• 128Kbyte Flash, 3.5K RAM, 1K EPROM up to 256Kbyte I2C external memory

• 12 � 10-bit A to D converter

• 5 � 10-bit PWM outputs

• Serial UART, I2C, SPI and 1-wire comms

• 2 interrupts

• 20MHz and 32KHz oscillators

• Low dropout 400mA power regulator

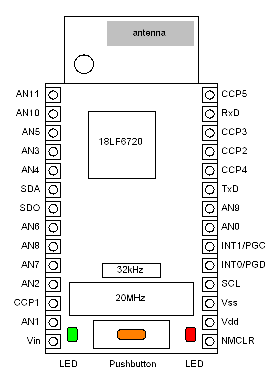

• 45 x 22 mm through-hole mount, suitable for breadboards

ToothPIC Services Features

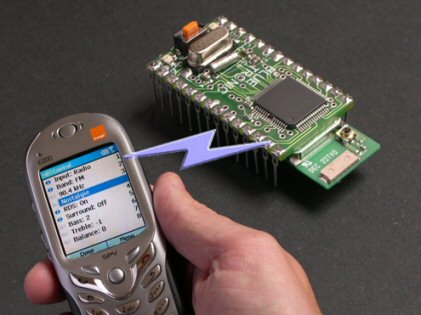

• FlexiPanel server – creates user interfaces on computers, PDAs, cellphones with no development needed on remote devices

• Wireless field programming lets developers distribute firmware upgrades electronically

• System services including: Bluetooth communications, interrupt and memory management, sleep-safe real time clock with daylight savings time / day-of-week calculator

ToothPIC Module

Operating Modes

• Pre-tested Firmware Solutions ready for immediate standalone operation:

    - OpenTooth Bluetooth device sensor

    - DARC-I Data acquisition and remote control managed via Bluetooth

    - DARC-II Data acquisition and remote control with FlexiPanel User Interface

• ToothPIC Slave where ToothPIC is controlled by a host processor via a serial link.

• Standalone ToothPIC programmable in C for low-cost, customized standalone operation.
