Kingsbright

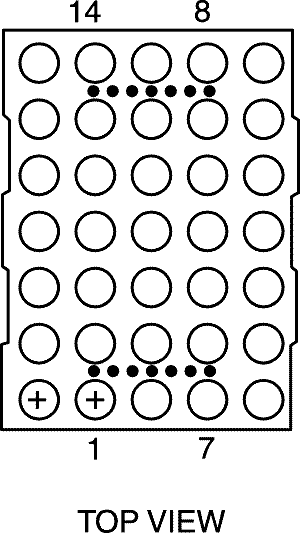

H. 53·3 W. 38 D. 8·45
Pin space 2·54 Row space
38·1
5×7 dot matrix LED displays with X-Y select, end stackable with
interlocking mouldings for side stacking. Pin 1 is identified on the
side of the body. Segments are white diffused providing excellent
on/off contrast.
|
|
| |
part no. |
typ. |
max. |
mcd @ 10mA |
dissipation |
| |
|
V |
mA |
min. |
max. |
mW |

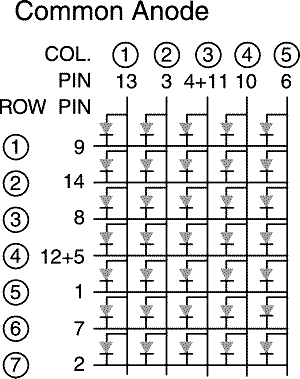

| Common anode |
|
|
|
|
| H.E.red |
TA20-11EWA |
2 |
30 |
3·6 |
9 |
105 |
| Super-bright red |
TA20-11SRWA |
1·85 |
30 |
9 |
31 |
100 |
| Green |
TA20-11SGWA |
2·2 |
25 |
3·6 |
9 |
105 |

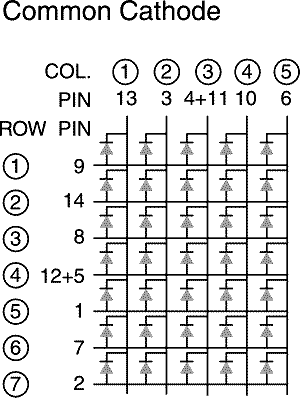

| Common cathode |
|
|
|
|
| H.E.red |
TC20-11EWA |
2 |
30 |
3·6 |
9 |
105 |
| Green |
TC20-11SGWA |
2·2 |
25 |
3·6 |
9 |
105 |
| VR 5V |
|
|
|
|
|
|
| Operating temperature range -40°C to +85°C |
| |
247-3309
